RF Testing

RF testing is a very important part of the design and manufacturing process of a RF product. It is involved in different stages of the product development from RF component selection to complete RF system deployment in the product. The measurements are highly dependent on the nature and kind RF component, sub system or system which is subjected for measurements.

At TTSL we offer complete spectrum of RF measurements starting from simple insertion/return loss, phase, spectrum and power measurements to complex inter modulation, harmonics, noise figure and gain measurements. The services are rendered in the different stages of your product design starting from RF component selection and subsystem validation to board level integration and system level validation.

The TIFAC Core in wireless technologies has the latest state of art RF testing equipments for the frequency range from 10 MHz to 20 GHz and skilled man power capable of measuring passives like filters, couplers, power dividers, actives like amplifiers, mixers, oscillators, and systems like transceiver chipsets, up down convertors, transponders ect.

  View More

RF Testing Facilities

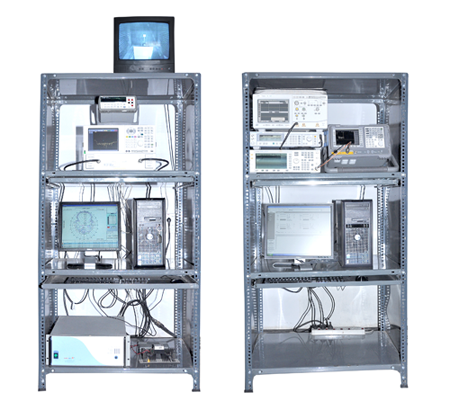

TTSL is equipped with the following RF test and measurement equipments from leading manufacturers like Agilent and Rohde & Schwarz.

  • Vector Network Analyzers
  • Spectrum Analyzers
  • Vector Signal Generators
  • Wireless Communication Test set
  • Noise figure Analyzers
  • Digital Storage Oscilloscopes up to 1 GHz

Measured RF Parameters

TTSL has the necessary equipment and expertise to characterize the following linear and non-linear RF circuit properties.

  • S Parameter measurements – Insertion/ return loss, bandwidth and impedance
  • Group delay and phase measurements
  • Spectrum and Power Measurements
  • Gain and Noise figure Measurements
  • Harmonics and Inter- modulation measurements
  • Wireless Board Testing up to 20GHz
  • RF signature analysis
  • Indoor and outdoor RF channel measurements
